FEMA makes a full line of proportional pressure controls from 100 pisg. – 5000 psig. These valves have many applications from relief valve piloting to molding pressure control.

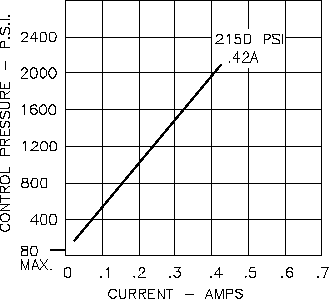

Technical Specifications FEMA custom designs and develops products to specific customer needs. The following specifications are intended as examples. Please contact us with your application to learn more about our capabilities. Application and Performance Data: Pressure (C Port): Control pressure P.S.I. at 0.20 G.P.M. nominal flow (click on graph at right) Operating Voltage: 24 VDC Hysteresis: Less than 5% Fluid: Hydraulic Oil Fluid Operating Temperature: 60ºC (140ºF) maximum

Composition
O-Rings:Valve contains Viton O-Rings
Body: Aluminum Anodized
Envelope Pressure Ratings (C Port): 3300 P.S.I.
Envelope Pressure Ratings (T Port): 250 P.S.I.

Tank Port Information:
Connection: Must be connected directly to tank.
Note: Back pressure or fluctation of pressure in tank line will reflect on controlled pressure.

Customer to Supply:
Socket Head Cap Screws: 2 (1/4 dia. x 2 LG)
Filter: 40 micron or better filter with a beta ratio of 10 or greater
